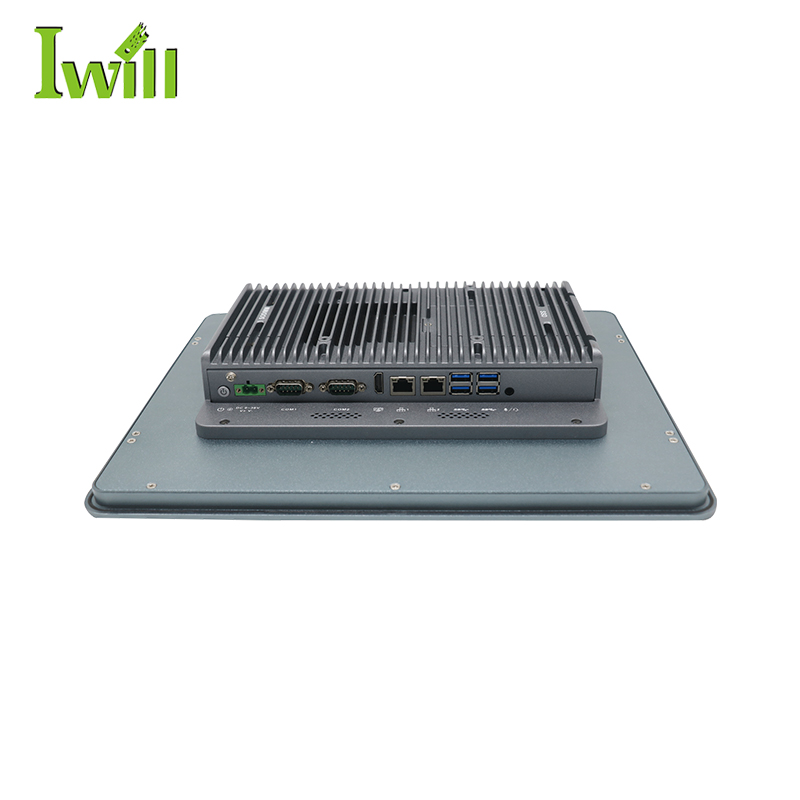

IWILL ITPC-A500 — 15" Industrial Panel PC
SKU: ITPC-A500-I5-8260U-8GB-64GB
HK$5,600
In Stock · 2 unitsHK warehouse · same-day dispatch
15" industrial panel PC with IP65 front, Intel i5-8260U, capacitive multi-touch, RAID 0/1 storage, and 9~36V wide voltage. Designed for industrial automation, SCADA, medical, and warehouse applications.
Specifications
| Processor | Intel Core i5-8260U (4C/8T, 1.6GHz, Max 3.9GHz, 6MB cache) |
| RAM | 8GB DDR4 2133/2400MHz SODIMM (1 slot, max 32GB) |
| Storage | 64GB SSD (1× M.2 2280 SATA + 1× 2.5" HDD, RAID 0/1) |
| Display | 15" TFT-LCD, 1024×768, 350 cd/m², Full viewing angle, 4:3 |
| Touch | Industrial multi-touch capacitive, >50M touch life |
| Graphics | Intel UHD Graphics |
| Display Output | 1× HDMI + 1× LVDS (sync/async 2 displays) |
| Ethernet | 2× Intel 1000Mbps LAN (4× optional) |
| USB | 4× USB 3.0 + 2× USB 2.0 |
| Serial | 2× RS232/RS422/RS485 COM (6× optional) |
| Expansion | 1× Mini PCIe (WiFi/BT/3G/4G + SIM slot) |
| IP Rating | Front panel IP65 |
| Power | DC 9~36V (positive/negative protection) |
| OS | Windows 10, Linux |
| Dimensions | 366 × 290 × 60 mm |
| Embedded Size | 355 × 279 mm |
| Weight | 3.9 kg |
| BIOS | AMI EFI BIOS |
| Certification | CE, CCC, FCC Class A, RoHS |
